Data Models

In this blog post, we will look at data models, differences between fixed and flexible schema, role of data structures. Data models describe how a user interacts with the data. It is an abstraction layer, or to be more precise - a set of layers. In simpler words, it’s a plan or outline for an end-user how to understand data.


This post is a part of Data Governance From an Engineering Perspective, a series of posts about Data Governance and Metadata.

The contents of this post might make more sense if you read the previous posts in this series.

  1. Introduction
  2. Physical systems
  3. Data models (this post)
  4. Business processes & Compliance

Data models increase data understanding across systems and processes. They provide definitions, ensure usage rightfulness

Without data models, you end up with inconsistent, ambiguous, incorrectly classified data silos.

However, there are more than one data model definition. Here’s my take on it.

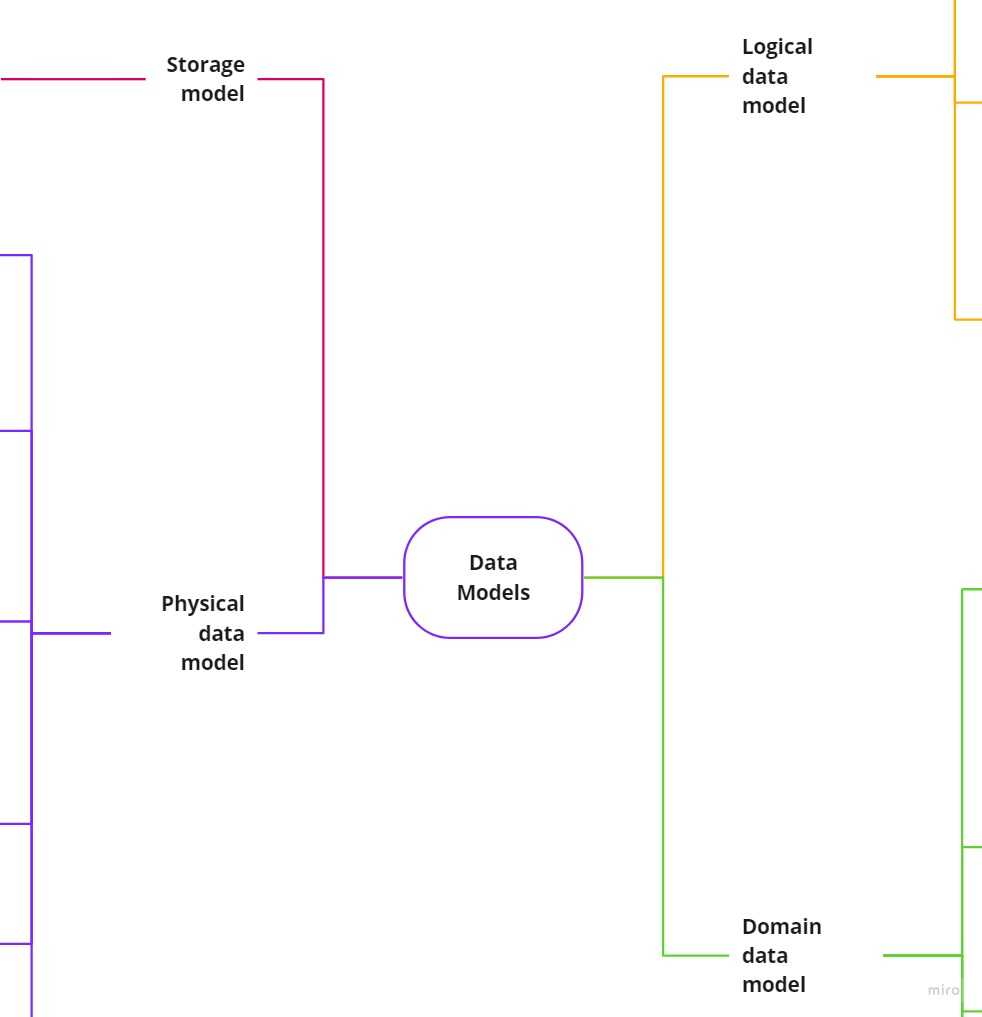

214a6d43eafbe77df3138d3adb599a1f7c96362d

Different types of data models

Data models describe how a user interacts with the data. It is an abstraction layer, or to be more precise - a set of layers. In simpler words, it’s a plan or outline for an end-user how to understand data.

There are 4 layers we should be aware of:

[] storage model, which describes how the database stores and manipulates the data internally. In
an ideal world, we should be ignorant of the storage model, but in practice we need at least some
inkling of it—primarily to achieve decent performance.”_ - NoSQL Distilled, 2012

The second layer, a physical data model, describes storage and database artifacts: tables, columns, keys, data types, validation rules, database triggers, stored procedures, domains, and access constraints,

Logical data model helps in building data semantics, meaningful data aggregations. It includes modelling frameworks, entities (tables), attributes (columns/fields) and relationships (keys).

Last but not least, domain data model, uses non-technical and business terms. It defines business processes & behavior. Doesn’t contain technical implementation details.

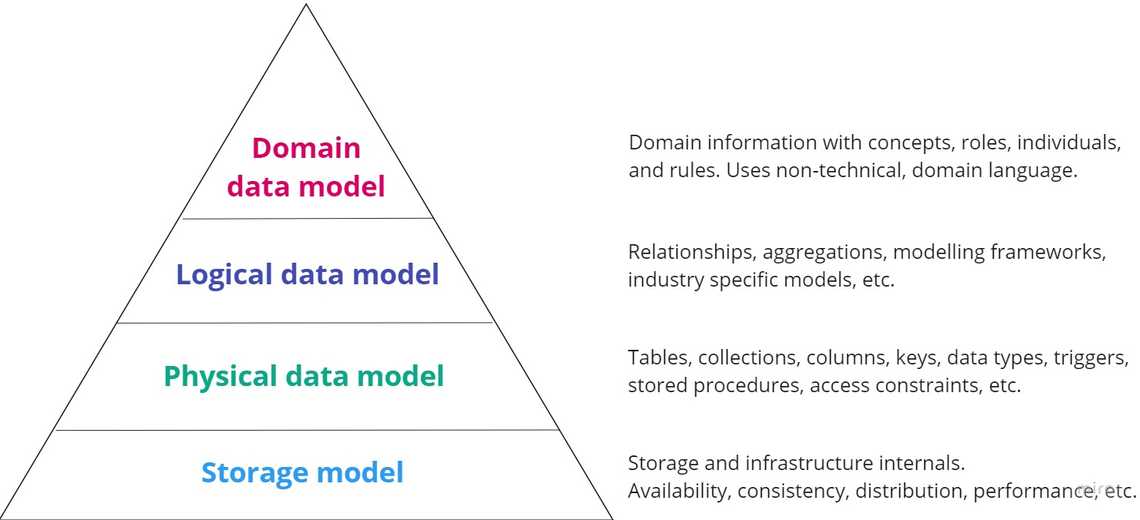

e6fbf50448d3a85b5cb5f278f4af9ec913b5b90b

Storage model

The lowest abstraction layer, the storage model, describes how databases manipulate data internally.

Databases use different techniques and algorithms, offer different availability, consistency, performance capabilities. It’s important to understand these limitations during the technology selection process.

What data structures data storages use?

Greg Kemnitz, one of the Postgres contributors, nicely summarized on Quora - “databases use pretty much every data structure you’ve ever heard about - and many you probably haven’t encountered”

Storage model, database internals
Storage model, database internals

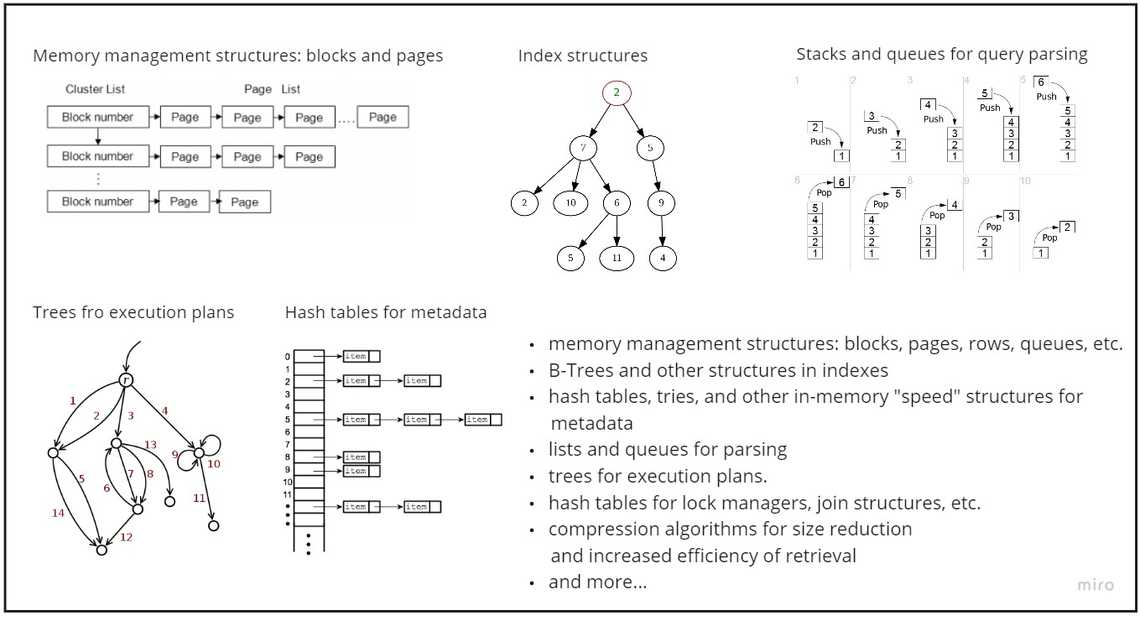

As Greg pointed out in his response, the vast majority of data structures in a database don’t store data. “They’re for parsing, query optimization, query execution, concurrency, query scheduling, managing application connections, etc.”

How is the storage model relevant to data governance?

There are certain trade-offs you have to be aware:

  • Atomicity - What if users see a partial completion of a transaction?
  • Consistency - Do all replicas eventually reach the same, correct, final value?
  • Isolation - Can two transactions mingle or interfere with each other?
  • Durability - Will transaction changes be saved even if power is turned off?
  • Data size - What data amounts can we store?
  • User count - How many readers and writers will you support?
  • Workload type - Do I need OLAP or OLTP database?
  • Backups - Is my data stored somewhere else in case of emergency?
  • and so on …

If you are interested more into understanding different storage models, database internals, build your own storage and learn by doing.

There is no need for us to dive further into data structures, algorithm performance. Instead, let’s jump up the abstraction ladder and look into the physical model.

696f01ddbb67d5a1dd796c9f7a09e1dae1e186bb

Physical data model

Here’s where we start talking about data contents. The physical data model acts as an abstraction on top of our storage model. You can see it as a user friendly UI on top of complex data storage model.

We can use various building blocks to establish our physical data model:

  • tables, collections, buckets, documents
  • columns, properties, data types
  • views, aggregations
  • schemas, domains
  • stored procedures, functions, triggers
  • access constraints
  • indexes, statistics

One of the most popular and widely use physical data model is the relational data model. It is best visualized as a set of tables, rather like a page of a spreadsheet. Each table has rows, with each row representing an entity. We describe this entity through columns, each having a single
value. A column may refer to another row in the same or different table, which constitutes a
relationship between those entities.

An alternative to the relational model is NoSQL world. There are four main categories with different physical data models: key-value, document, column-family, and graph.

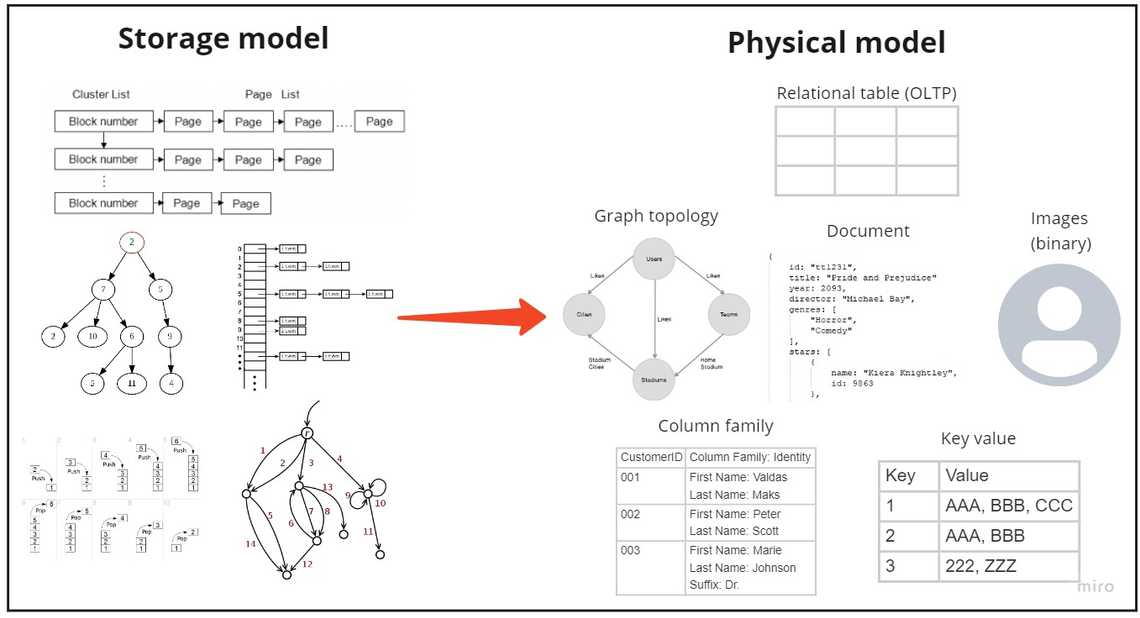

Storage and physical data models
Storage and physical data models

Flexible vs. predefined data model

Physical data model is the definition, the database schema the implementation. Some implementations have flexible, other have strict schemas.

Schema is a representation, manifestation of physical data model.

ae4edbf6c4591fca6c39e0c93dcc61e557b6812f

Predefined schema

Everyone exposed to music, video or graphics editing is familiar with compression. Basically, you want to find a sweet spot between quality and size.

For the best results, you choose lossless compression - it allows the original data to be perfectly reconstructed from the compressed data. For example, it is used in the ZIP file formats.

With data and analytics, there is a concept of raw data. Data in it’s native format, not cleaned, or aggregated, with history. Data products built on top of the raw data, can be recreated if needed (just like the lossless compression).

Before the rise of cloud storages and NoSql databases, the capability to store raw data was limited. Relational databases, for instance SQL Server, MySQL or PostgreSQL, required a predetermined schema, pre**defined physical model.**

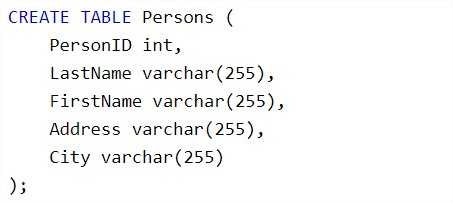

Here is a person’s table definition example:

9ea65d9d6fdfb84ab25cf6ac7d92cf3f4a8ac10c

Downsides of the predefined schema approach (also called schema-on-write):

  • Schemas are purpose-built and hard to change
  • Generally loses the raw data
  • Requires considerable modeling effort
  • If a certain type of data can’t be confined in the schema, you can’t effectively store it

Flexible schema

Data, just like the shape toys above, takes on different shapes. New storage technologies reduce cost per GB, allow to store more data in its native, raw, format.

Schema-on-read is dramatically simpler up front - you don’t have to force your data through a predefined schema.

Schema-on-read means you can write your data first and then figure how you want to organize it later. What are the benefits of schema-on-read?

  • Gives you flexibility over how the data can be consumed
  • More possibilities to store raw data
  • The approach promotes experimentation
  • Doesn’t restrict schema changes
  • Gives you flexibility to store unstructured, semi-structured, and/or loosely or unorganized data

Source: https://redbullracing.redbull.com/video/mystery-box-mayhem

Apart of the advantages discussed earlier, there are some drawbacks to schema-on-read too:

  • Can be “expensive” in terms of compute resources
  • The data is not self-documenting (takes extra effort to figure out a schema)
  • Less stable/predictable than schema-on-write

Read more about NoSQL databases https://pandorafms.com/blog/no…

Logical data model

We have a physical data model - tables, documents, graphs. We want to start building logical groupings of data along with business rules. We will be grouping data into data entities, setting up relationships. Disparate tables and technical column names start getting user friendly and business specific shape.

What is the main difference between the logical and physical data models? The logical data model does not care about the underlying storage technologies. We want to build semantics, aggregations, meaning datasets. In theory, we shouldn’t care either our data is in SQL, NoSQL or binary files.

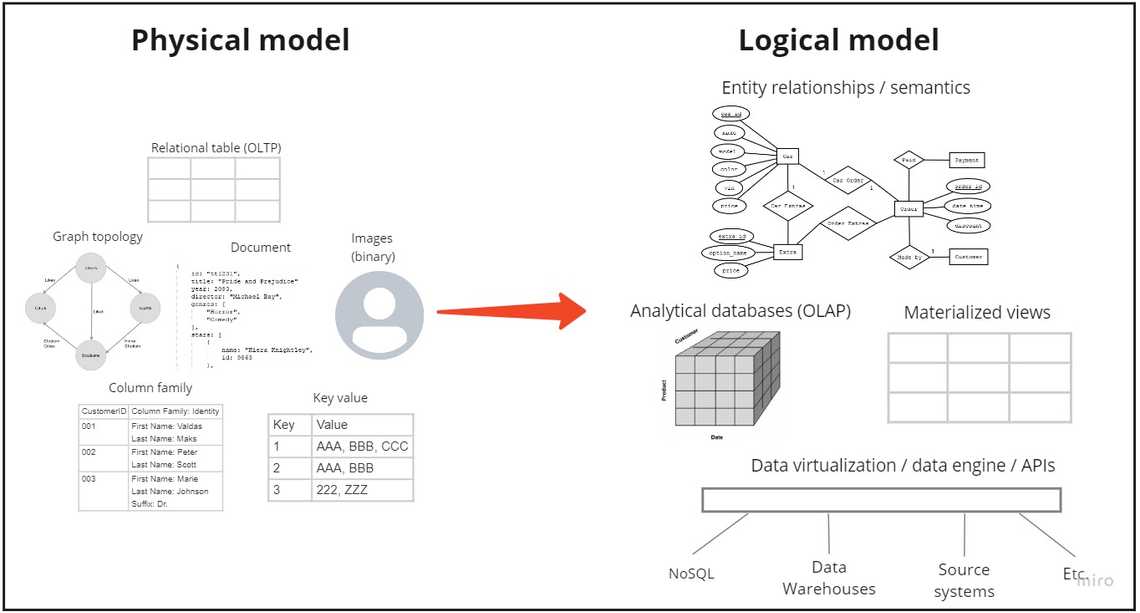

Physical and logical data models
Physical and logical data models

Talking about logical data modelling, I need to mention data modelling techniques. You have Kimball, Inmon, Data Vault approaches. Tomas Peluritis wrote a brilliant piece on different modelling techniques - Guide to Data Warehousing.

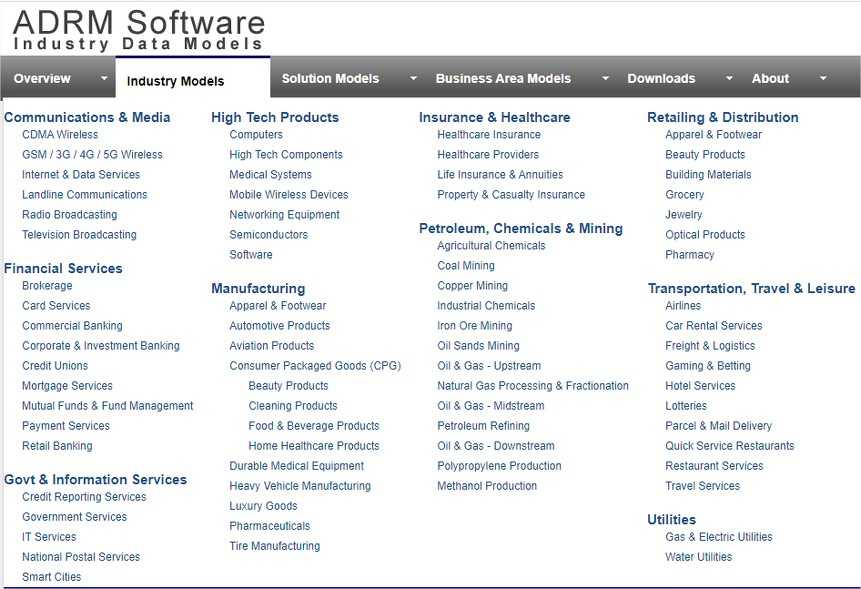

In some cases, you might decide to purchase a data model instead of building one from scratch. Companies like IBM, data.world, ADRM software (part of Microsoft), and others, provide ready for use industry models.

ADRM Software (Microsoft)
ADRM Software (Microsoft)

Domain data model

Thanks to logical data model we have relationships and unified data view. To achieve full data understanding across the organization and all stakeholders, you need to augment it with additional dictionary, business definitions, etc.

Without getting into the details, just look at how different English accents differ.

af1d7a3595ed8449d2749027bd9a4b0cedb3a637

Source: One language, three accents

Similarly, you have to be aware of different customer, product definitions in your company’s data. It depends who is your data user and what objectives does one want to achieve with the data.

That’s where the domain data model is required. Not only specifying entity definitions, but also in some cases tweaking the logical data model. Either the consumer is sales department, user support, etc.

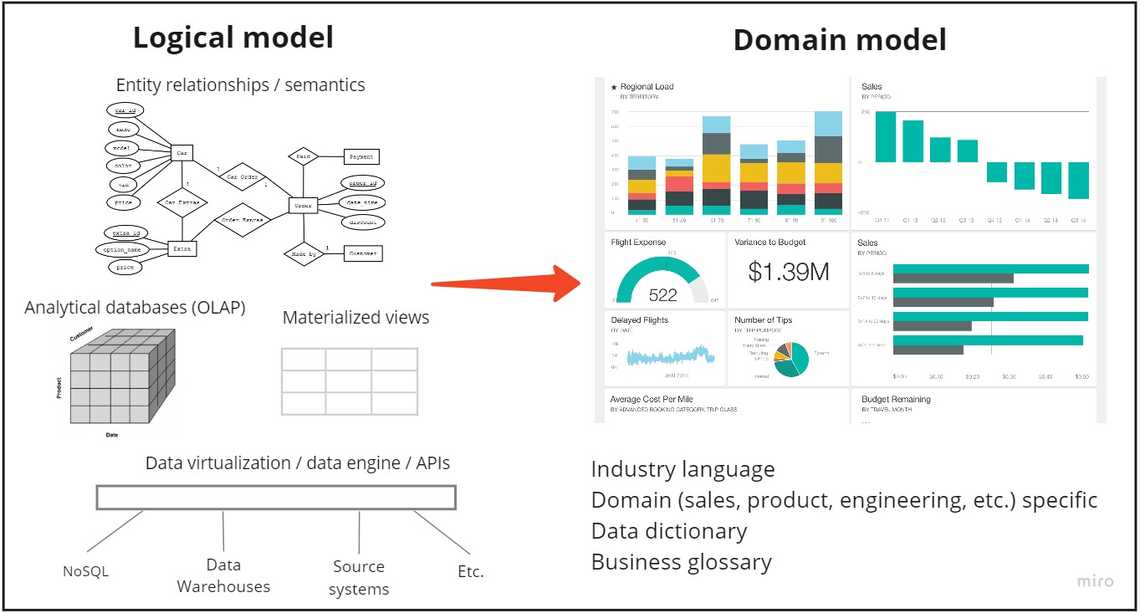

Logical and domain data models
Logical and domain data models

Summary

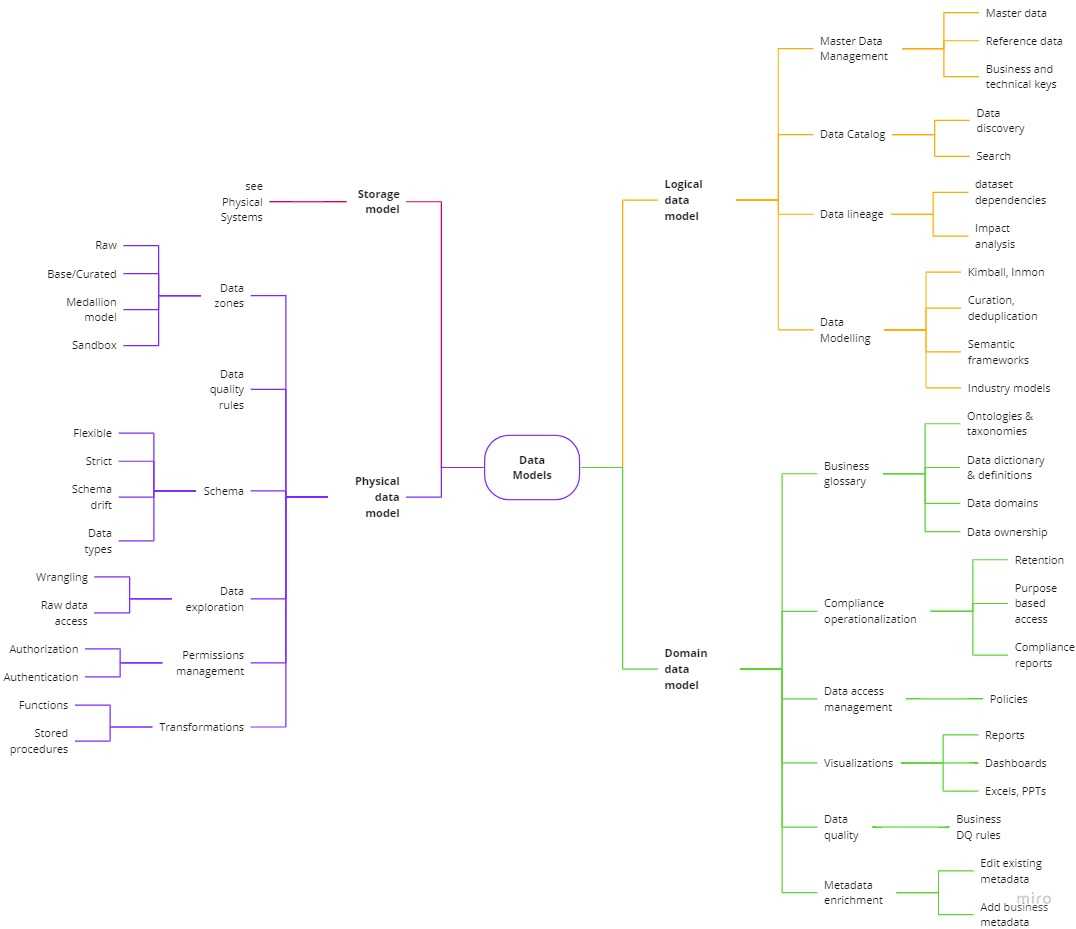

Storage, Physical, Logical and Domain models are just a part of a bigger picture.
